Sale!

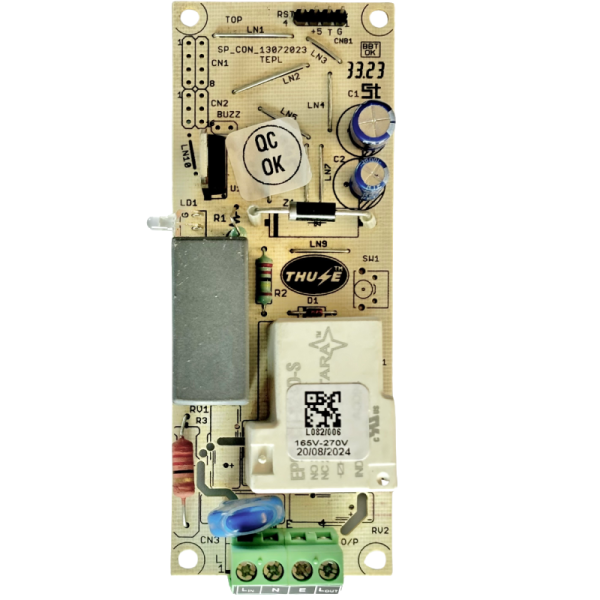

30A PCBA High Low Voltage Protector with Surge Protection Upto 4000 Volts

30A PCBA High Low Voltage Protector with Surge Protection Upto 4000 Volts

Amazon Price: ₹ 1199
MRP: Original price was: ₹2,199.Current price is: ₹1,199.

  • Automatically detects High Low voltage thresholds and protects appliance connected to it – By isolating that harmful power reaching to your appliance. 30A PCBA High Low Voltage Protector prevents damage to electrical and electronic equipment / appliances from power fluctuations, specifically over and under voltage levels of long duration. When the mains power supply fluctuates outside preset tolerances (nominally 170 and 270V) the power to your equipment is disconnected by 30A PCBA High Low Voltage Protector.
  • Automatically detects safe voltage range and keeps your appliance running safely under the shield of 30A PCBA High Low Voltage Protector.
  • Startup delay ensures proper power conditions before applying power to your appliance connected to 30A PCBA High Low Voltage Protector.
  • Very compact and affordable design to protect your appliances from dangerous voltage fluctuations.
  • Surge Protection up to 4000 Volts (20 C/s).
  • Compliant with Stringent International Tests Standards IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-11, IEC 61000-4-13, IEC 61000-4-14, IEC 61000-4-28.
  • Automatically detects Un-Healthy power fluctuations and trips the power to the appliance.
  • Resumes power automatically once voltage is Healthy

Categories: ,

Description

Automatically detects High Low voltage thresholds and protects appliance connected to it – By isolating that harmful power reaching to your appliance. 30A PCBA High Low Voltage Protector prevents damage to electrical and electronic equipment / appliances from power fluctuations, specifically over and under voltage levels of long duration. When the mains power supply fluctuates outside preset tolerances (nominally 170 and 270V) the power to your equipment is disconnected by 30A PCBA High Low Voltage Protector.

 Key Features  Applications
  • Low Voltage Trip: 165V
  • Hi Voltage Trip: 170V
  • Response Time: 70-95 ms
  • Hysteresis: 5-7V
  • Recovery Delay: 5 Sec
  • Input: 140V-440V AC, 50Hz
  • Up to 4KV Surge Protection
  • Max Current Rating: Up to 30A AC, 50Hz @ PF-1
  • Dimension (mm): 1139(L)x 44(W)x21(h)
  • Machine
  • EV Battery Charger
  • Control Panels
  • UPS, DC & AC Drive
  • 3 Phase or 1 Ph Load
  • Servo Stabilizer
  • Water Purifier
  • Water Cooler, AC



Additional information

Weight 0.286 kg
