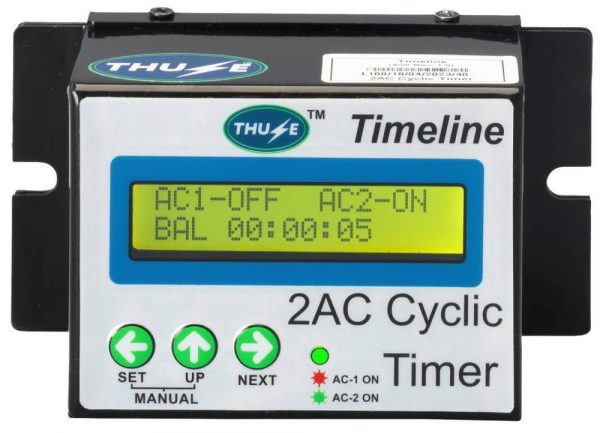

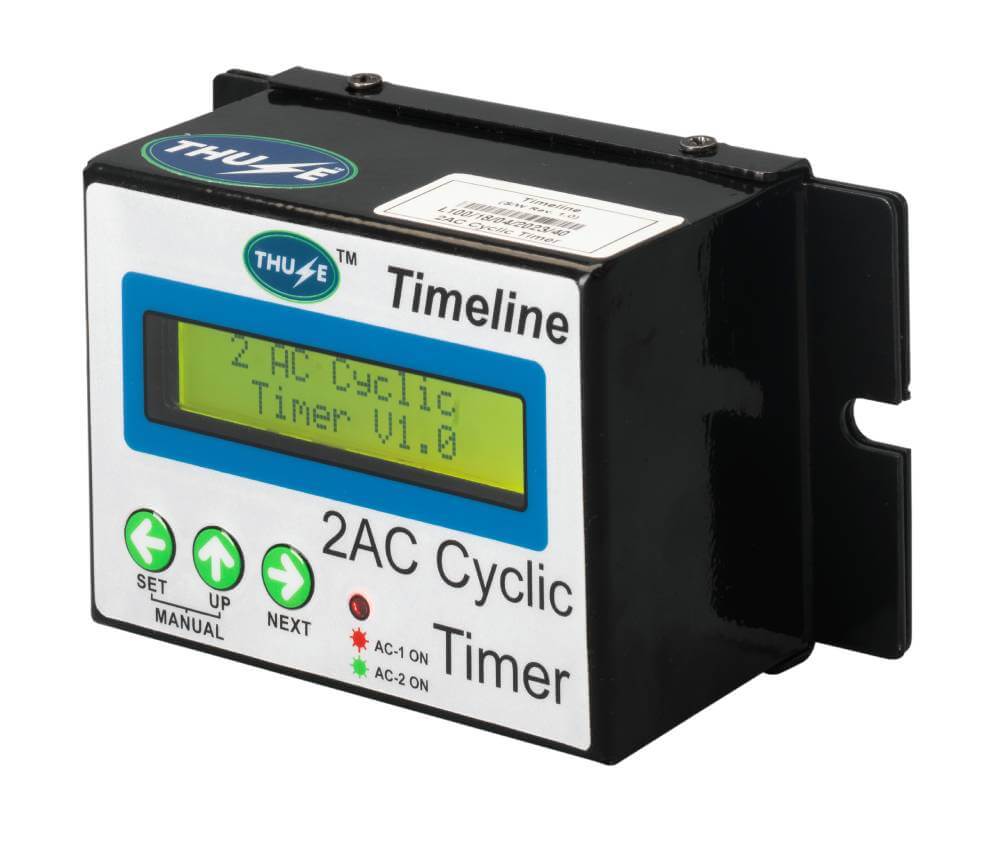

Timeline 2AC Cyclic Timer

Your timer can take directly connected AC load up to 2 tons 1 phase max. For higher or 3 phase AC installations use a contactor of suitable ratings having coil voltage as 240V AC,
50Hz.
Use proper wire gauge according to the max. current ratings of the ACs installed. Timer connectors screws to fix wires should be tightened securely. Do not leave it loose.

User Interface:

• AC1 & AC2 Max. ON duration: 99HH: 99MM: 99S
• AC1 & AC2 Min. ON duration: 00HH: 00MM: 01S
• 16×2 LCD Display with Green Backlight
• 3 Keys for user settings and control

Display:

16 Characters X 2 Lines Multi-info LCD with Back-Light. Shows Live Count Down
Of Time.

TECHNICAL SPECIFICATIONS:

• Operating Voltage Range: 90V to 440V AC, 50Hz.
• Maximum Contact Rating: 30A @ Unity PF.
• AC-1, AC-2 Max. AC Tonnage: 2 Ton (Window or Split)
• Technology: Advanced Micro-Controller with Memory Backup.
• Mounting: Wall or Board Mountable.

Features:

• Working: Both AC’s ON time can be adjusted independently. It can be equal or
  unequal as per user’s choice. While one AC-1 is ON, AC-2 remains OFF. As soon as
  AC-1 turns OFF, AC-2 turns ON. This happens cyclically / in a loop.
• Technology: Advanced Micro-Controller Based Technology.
• Memory Backup: After power failure, when power resumes, whichever AC was
  operating before power failure, turns ON at elapsed time and exact balance time starts
  counting down.
• Modes: Auto / Manual Modes.
• Memory Backup: After power failure, when power resumes, whichever AC was
  operating before power failure, turns ON and exact balance time starts counting
  down.
• Cyclic Operation: To power 2 ACs – Turn By Turn.
• Simple To Set: Precise but simple settings in HH:MM:SS Format for each AC.
  Shows Live Count Down on LCD display in run mode.
• Design: Robust metallic design. Operates between 90V to 440V AC/ 50Hz – Widest
  operating voltage range in the market. No one offers this.
• Form Factor: Most compact form factor. Wall Mountable & Economical Model.
• Output:Two heavy duty 30A relay outputs capable to take load of AC-1 & AC-2 up to 2 Tons each. Using contactor, you can connect higher capacity or 3 Ph ACs.
• Memory Backup: After power failure, when power resumes, whichever AC was
  operating before power failure, turns ON and exact balance time starts counting
  down.
• Warranty: 12 Months carry-in-warranty.

Product Dimensions:
(L x H x D) mm – (118 x 70 x 60)

Weight: 413 gm

Technical Notes

• Your power line supply PHASE & NEUTRAL are to be connected as input to the marked
  locations on the connector.
• PHASE for AC1 & AC2 is made available at the connector at locations marked as AC1 L and
  AC2 L respectively. NEUTRAL & EARTHING connection of the ACs should be wired out
  and out to supply line. They are no way to be connected to timer’s connector.
• Connect ON-OFF main switch at the input and 2 MCBs – one for each AC of suitable rating
  at the output side of the timer’s connection as a safety precaution.
• Your timer can take directly connected AC load up to 2 tons 1 phase max. For higher or 3
  phase AC installations use a contactor of suitable ratings having coil voltage as 240V AC,
  50Hz.
• Use proper wire gauge according to the max. current ratings of the ACs installed.
• Timer connectors screws to fix wires should be tightened securely. Do not leave it loose.
• For any kind of doubt, query, please ask our customer care on 8888 151 151.
