Timeline Water Timer With Surge Protection

Key Features

Applications

To be operated with either Solenoid Valve or Water Pump. Up to 30 watering slots can be configured in 24 hours. Daily, Weekly programming of single or multiple watering slots. Water Breaks / Water Vacations / Monsoon Breaks. Provision to define weekly off days, water holidays in the year. Bypass mode for Manual Watering Operation. Operates on 230V AC. Operates with 230V AC coil operated Solenoid Valve. Solenoid Valve sold separately or you may buy it of your own choice.

Terrace Gardening Urban Farming Water Irrigation System (Sprinkler) Gardens At : Housing Societies. Bungalows / Row Houses Farms Houses Factories. Municipal Gardens. Farms & Fields

Timeline Water Timer is an advanced timer that waters your plants / tank exactly as per time set/ programmed by the user. It is used where it is required to supply water at desired time slots of the day / days of week for the desired duration. SINGLE OR MULTIPLE WATERING TIME SOLOTS.

Number of Watering Slots:

It allows you to set 0 to 30  such watering events in a day as per your needs. You can apply those setting for the selected days of the week.

Each watering event has the following attributes which can be user programmed:

1. ON time in HH:MM:SS format.
2. Duration in HH:MM:SS format.
3. Active Weekdays ( Monday to Sunday) by simply choosing ❌ or ✔️ for each of the week day.

Water Holidays Settings:

You can define and apply max. 20 water holidays scattered throughout the year on different dates. Holiday can be defined in following format: DD/MM/YY

In addition to this, you can also apply weekly holidays. As many holidays you want in a week. Weekly holidays set would automatically get applied to every week till you edit and change it.

Water Break :

You may need to break water supply to the plants / crops for few days to few months depending upon:

• Some Crop / Plants need water breaks for better growth and yield.
• Monsoon Break – During monsoon you may not need the extra watering as there is abundant availability of natural rain waters in the farms / fields.

You need to define Date Range/s if you want WATER BREAKS / WATER VACATIONS:

Water Breaks / Water Vacations (Max. 10 date slots) can be defined as follows:

Start date: DD/MM/YY
End date: DD/MM/YY

Like this, you have an option to add such 10 different Water Break / Vacation Date Ranges.

Manual Bypass Mode:

Manual Override (Manual Bypass) is available. When for some reason if you wish to switch it ON or OFF the water supply prematurely, then you can use this “Bypass” Function.

This Means:

• If Water Timer is yet to start watering the plants. Means the watering time slot has not yet arrived and hence there is currently no watering. For some reason you want to start watering the plants prematurely. So press first 2 keys SET & UP simultaneously. Keep it pressed for 5 Sec. It will result in watering instantly even if it is not scheduled for. “BYPASS” will be displayed on the LCD screen. To come out of this mode, press SET & UP Key again.

• If Water Timer has started watering the plants. Means the watering time slot has arrived and hence there is currently watering to the plants is being done. For some reason you want to stop watering the plants. So press first 2 keys SET & UP simultaneously. Keep it pressed for 5 Sec. It will result in stoppage of watering instantly. To come out of this mode, press SET & UP Key again.

So, by pressing “Bypass” it will change the water output complimentary to Water Timer’s current water output state.

Features:

• User-friendly operations
• Max. 30 independently programmable watering events per day.
• Applicability for each watering event on which weekdays is user selectable. Can define weekly active or holidays for each watering event
• Max. 20 user programmable water holidays distinctive dates scattered in a year.
• Max. 10 user programmable Water Break /  vacations ranges.
• Watering Events prog. Watering duration (ON time duration) from1sec to 23hours 59minutes 59seconds in a day.
• Bypass mode for manual operation
• Shows upcoming watering event
• Memory backup in case of power failures

Applications:

• Terrace Gardening
• Urban Farming
• Water Irrigation System (Sprinkler)
• Gardens At :
  • Housing Societies.
  • Bungalows / Row Houses
  • Farms Houses
  • Factories.
  • Municipal Gardens.
  • Farms & Fields

• Specifications:

• Input voltage range: 90V to 440V AC, 50/60 Hz
• Max load current 28A / 5 KW single phase 230V AC, 50Hz (resistive load)
• Separate setting for watering event/ prog. time and watering event/ prog. duration
• Power failure memory backup
• Designed & mfd. in India to suit Indian power conditions
• Passes stringent Voltage Fluctuation tests as per IEC Standards
• Dimensions (mm) : 72 (H) x 120 (w) x 61 (D)
• Weight: 470 Gm

Functioning:

Timer’s internal relay performs On-Off operations of the solenoid valve or electric pump externally connected to its output according to watering events/ programmes set by the user. It can have max. 30 multiple watering events/programmes in a day depending on lengths of the events/ programmes.

Basic Construction (1 Phase Load):

It has a compact form factor and excellent build quality. This is a simple wall mountable Water Timer. Its construction can also be modified to suit customer specific requirements like DIN-RAIL mounting and so on. This product can handle load up to 5KW Resistive – Single Phase Load. For higher load, place order for Panel Constructed versions having contactor of suitable ratings.

Panel Construction for 3 Phase Load:

Timeline Water Timer also can be supplied in a full panel form that includes a contractor & MCBs to suit any KW ratings ranging from 5KW to hundreds of KW/HP of external electric water pump. The panel can be supplied in different IP Grades to suit various environmental conditions.

Controls:

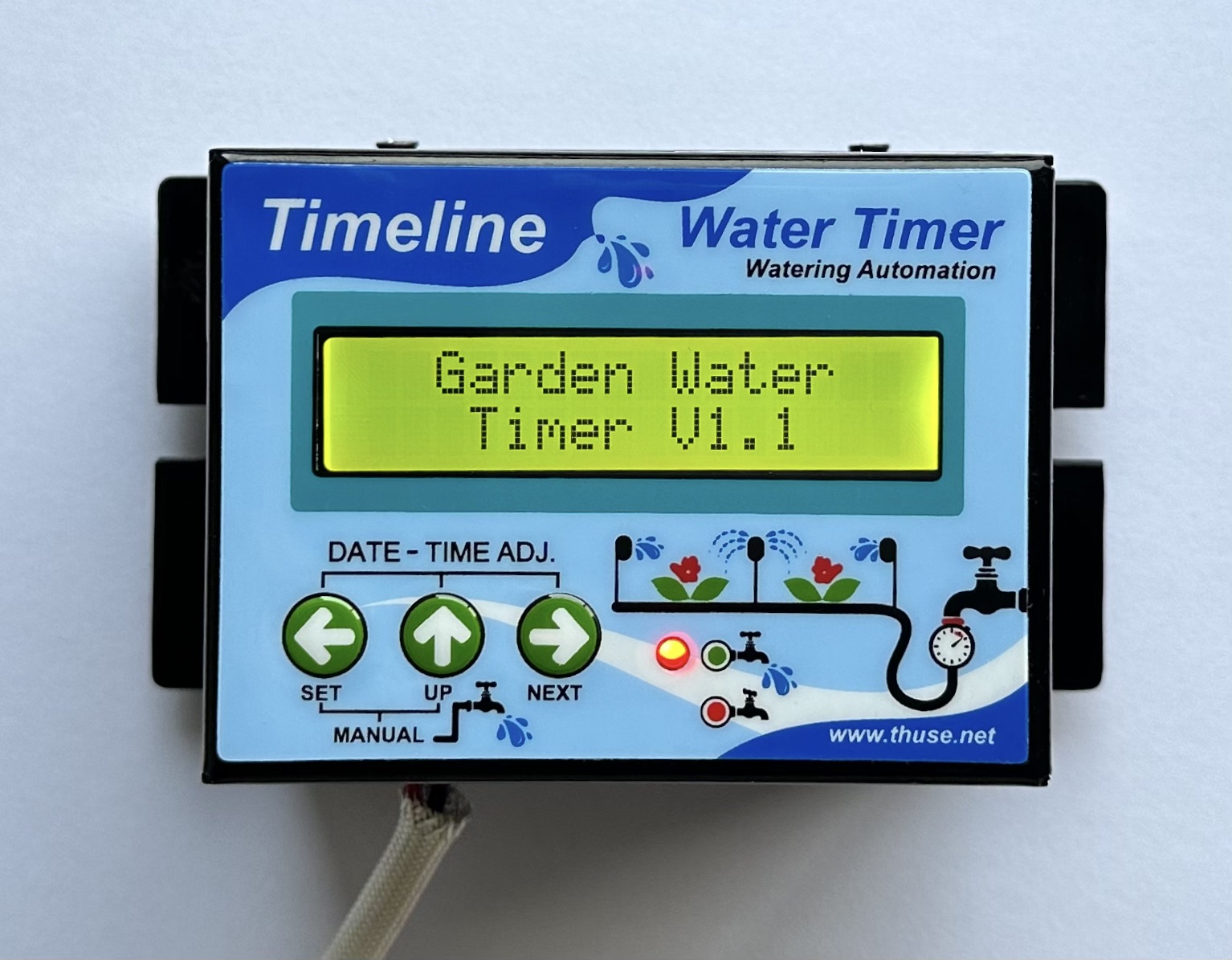

Timeline Water Timer Features:

• A two lines LCD display with bright green backlight for user interaction along with 3 keys.

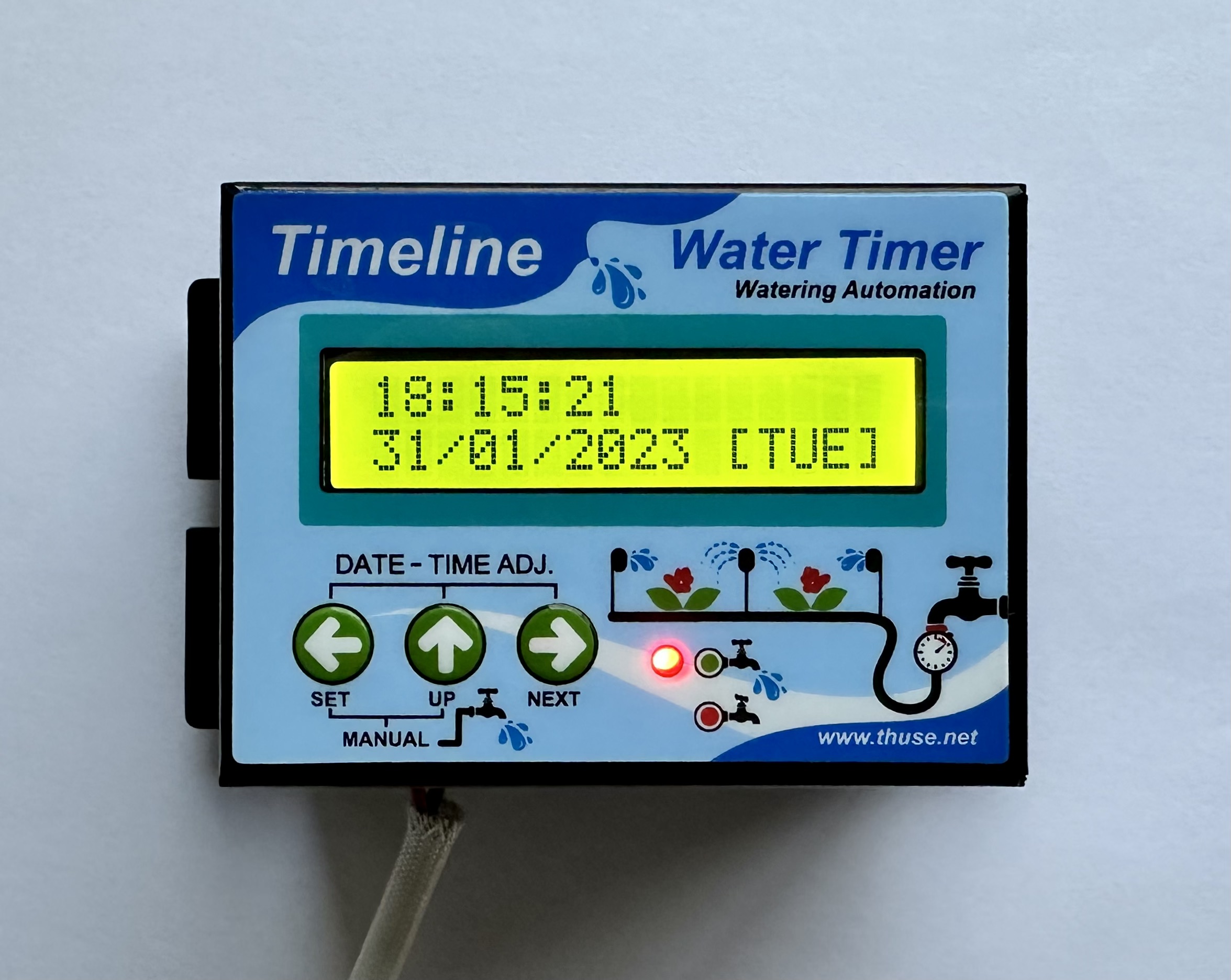

• By default, LCD displays date, time, the day of the week and upcoming watering event if any.
• LCD/keypad interface allows the user to enter settings for Watering Events, Water Holidays, Water Break / Vacation ranges or current time/date.
• LED indication for watering  status (Green for WATERING ON and red for WATERING OFF)

High Voltage Sustainability (Optional):

This product can sustain High Line Voltage up to 440V AC. By accident, if single phase supply turns to 440V A.C, this product can sustain it.

Availability & Warranty:

The product can be sourced directly from us by contacting us on business@thuse.net
This product comes with a one-year standard warranty against any manufacturing defect. This is a Carry-in-Warranty.
