Timeline Cyclic Timer with Surge Protection

General Description:

Description: Timeline Cyclic Timer is an advance Timer that is ideal for use in automation circuits and other industrial applications. Fabricated by utilizing quality components, these save a substantial amount of electricity bill and are capable of yielding better efficiency and higher output.

User Interface:

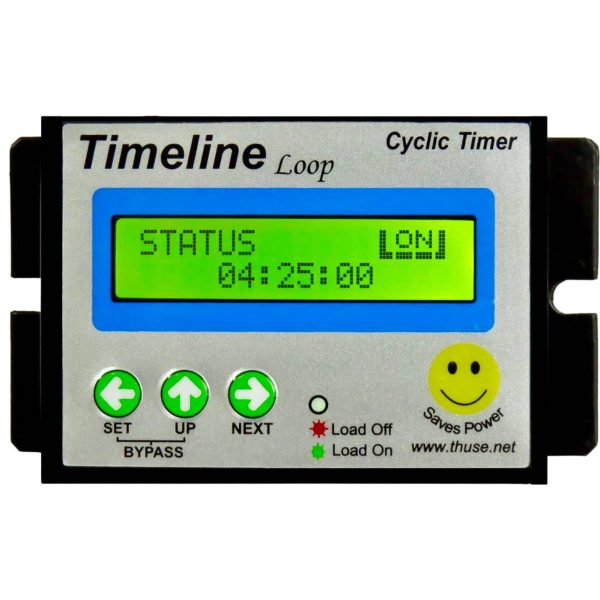

• 16 X 2 LCD Display with Green Backlight
• 3 Buttons for User Settings and Control

Input / Output :

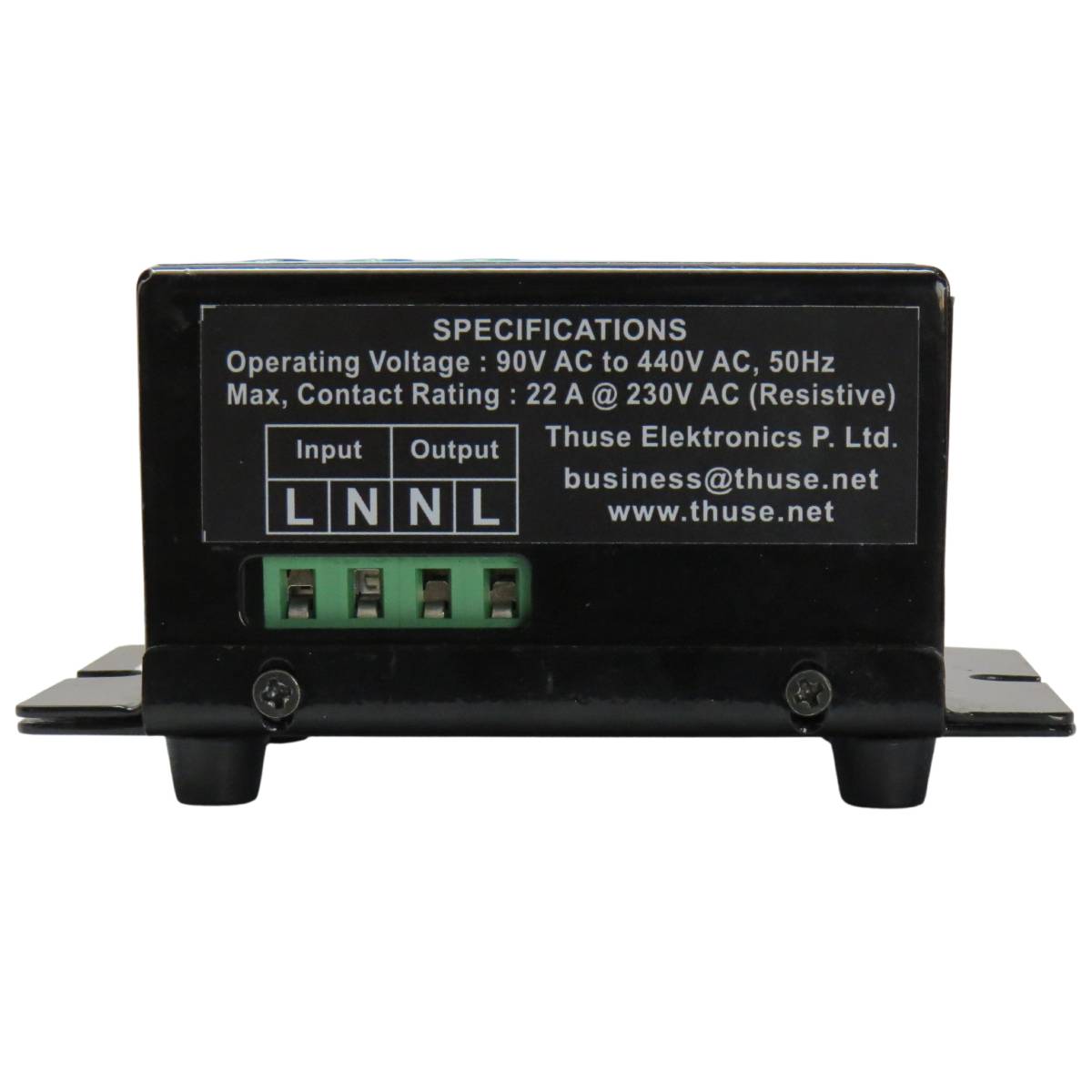

• Input – 120 V to 440 V
• Output – Single Channel 230 V AC Output
• Current – Maximum Current Rating – 22 A, 230 VAC

Basic Construction (1 Phase Load):

• It has a compact form factor and excellent build quality. This is a simple wall mountable timer. Its construction can be also modified to suit customer specific requirements like DIN RAIL Mounting and so on. This product can handle load up to 5KW Resistive – Single Phase Load. For higher load, go for Panel Constructed versions.

Panel Construction for 3 Phase Load:

• Timeline Astro also can be supplied in a full panel form that includes contractor & MCBs to suit any KW ratings ranging from 5KW to Hundreds of KW. The panel can be supplied in IP Grade to suit various environmental conditions.

Features and Functions :

• ON-OFF duration can be set in terms of hours, minutes and seconds(HH:MM: SS)
• Restores the last status after Power ON
• Simple interface for settings
• Displays remaining time during ON or OFF interval
• LED indication for ON/OFF status
• High Voltage Sustainability (Optional): This product can sustain High Line Voltage up to 440V AC. By accident, it single phase supply turns to 440V A.C, this product can sustain it.

Dimensions :

• 88mm x 65mm x 50mm metallic box enclosure

Applications :

• Any kind of process that demands cyclic On-Off functionalities, Laboratories, Testing Agencies, Industrial applications.
